Technology
GenCOM Suite is based on comprehensive technology for Intelligence systems. It is composed of several components, offering maximum flexibility for optimum fit to client needs.
Incorporating cutting-edge technologies to process and analyze intercepted data, GenCOM Suite generates sophisticated EOB (Electronic Order of Battle) buildup through advanced analysis of intercepted COMINT / ELINT / IMINT / SAR / OMTI / GMTI data, using state-of-the-art algorithms and a friendly, highly customizable user interface.
GenCOM Suite additionally functions as an advanced simulation platform to provide full battlefield electronics simulations, for user training or system components testing and integration support.
Suite components
- Real-time SIGINT analysis components
- Active online display
- Simulation platform
- Offline analysis tools
- Audio / data management center
| Operating system | Windows / Unix / Linux |
|---|---|
| Input | Intercepted SIGINT data from multiple sensors and sensor types |
| Output | Automatic multi-layered situational awareness picture |
| Connectivity | Central database, audio systems, jamming systems, C4I, VISINT |
Analysis

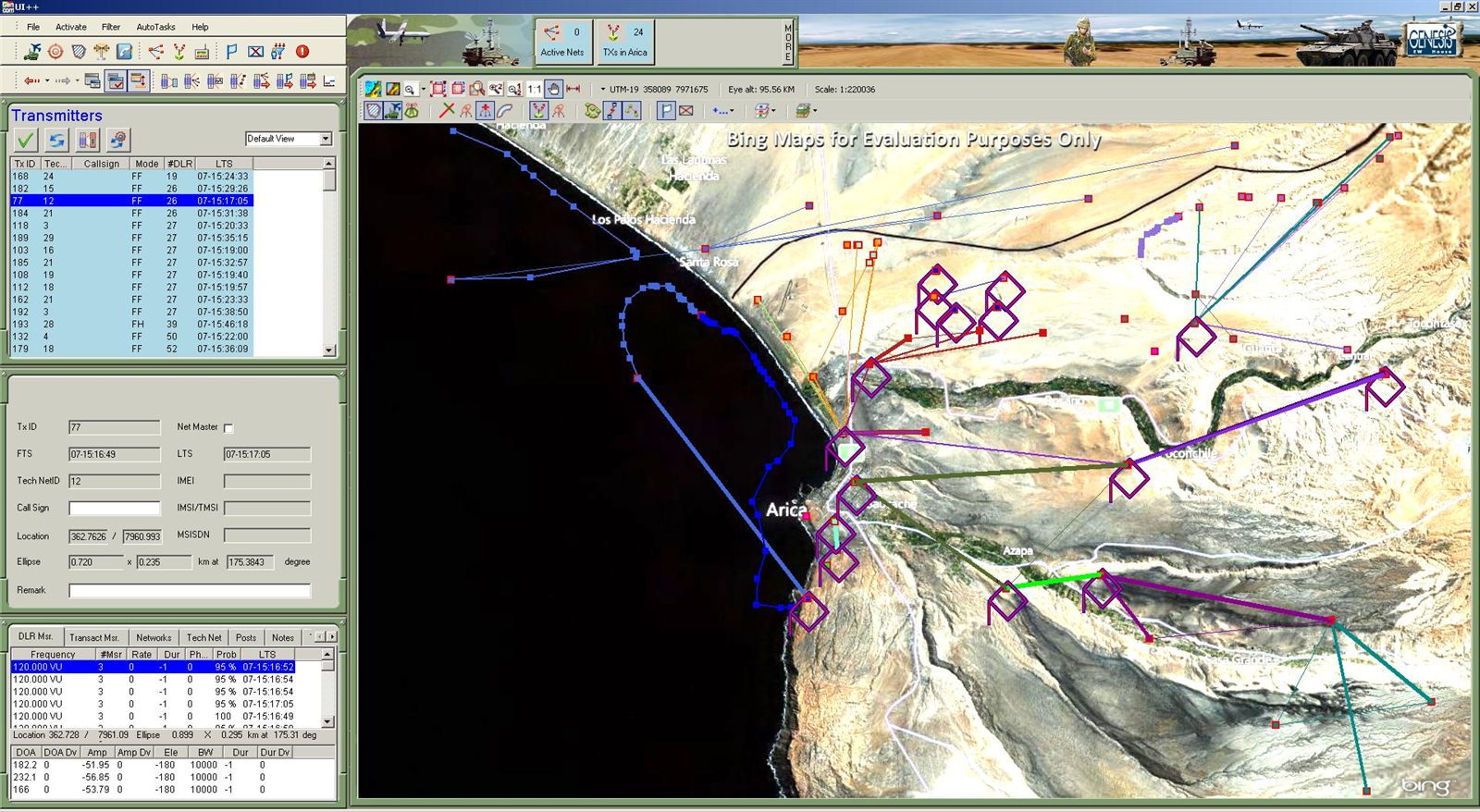

GenCOM EOB
Builds up a basic EOB picture from intercepted data received from multiple sensors, using sophisticated mathematical and statistical algorithms and cutting-edge methods of data integration and analysis. The result is easily displayed on GenCOM UI++ or any other user interface type.
In near real time, GenCOM EOB produces numerous battlefield entities, including networks, transmitters, PTTs and inter-transmitter links. Advanced algorithms identify new equipment activity on the battlefield and enable high-resolution transmitter separation, producing high location accuracy and a superior EOB picture.
GenCOM EOB++
Provides outstanding support to the battlefield decision making process by building up an advanced EOB picture about both basic and integrated EOB entities stored in the system database, together with specific target battlefield attributes including entity movements, unit movements, network hierarchy, command post hierarchy and unit hierarchy.
By using rich script format and algorithms based on extremely complex sets of user-configured rules, GenCOM EOB++ schedules rule execution in EOB build up and analysis according to user-defined time frames, and allows users to define new rules in runtime based on applicable combat / arena philosophy.
User Experience

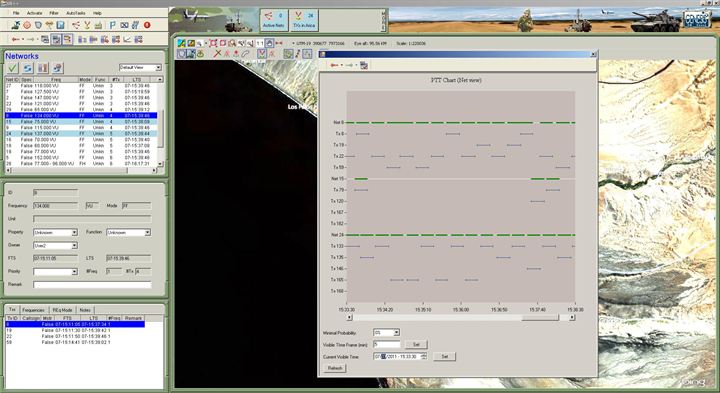

GenCOM UI++
A state-of-the-art SIGINT user interface application, designed for use with all SIGINT applications (such as GenCOM EOB and GenCOM EOB++) or simulation systems (such as GenCOM SimGen and GenCOM SimPro).

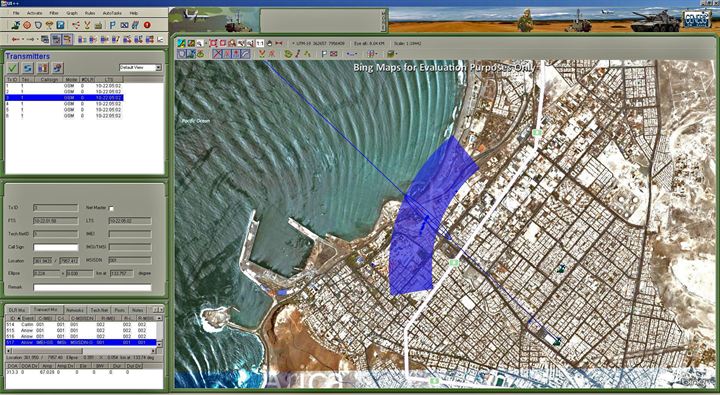

Using multiple data views, graphs and maps based on the system's EOB database, users study and probe intercepted data on visual displays, and perform a range of operations — delete, update, relate — on the EOB database to drill down and pinpoint critical data. Interfacing with standard map packages (GIS), GenCOM UI++ also supports DTM based views, including terrain cuts and electromagnetic coverage areas.
GenCOM SpecView
A real-time graphic spectrum viewer package which enables continuous spectrum display on an advanced and intuitive user interface.
SpecView allows for real-time spectrum activity tracking through its multi-perspective graph views, including 2-D, 3-D and waterfall graph types. All graphs are continuously updated online to indicate spectrum and EOB activity.
GenCOM UX Platform
Allows software developers to easily create user interface applications for any system, and significantly reduces the required development time for such applications. It is easily integrated into any database application, offers broad customization options, and enforces organizational security policies by defining user profiles that reflect the access licenses of different user groups.
Rule Engine Platform
The innovative Rule Engine Platform provides outstanding support to the user decision making process. It offers unique flexibility, allowing definition of new rules in run time, and is easily integrated into any database application.
Simulation
GenCOM SimGen — offline
An extremely flexible, user-friendly offline graphic tool for the definition of simulated EOB entities (units, networks, command posts, transmitters, etc.) and their tactical and electromagnetic activity, allowing rapid generation of complex battlefield scenarios.
| Tactical | Movements and relations among EOB entities |
|---|---|
| Electromagnetic | Network types FF, FH, FCS and their characteristic features and activity regime |
| Terrain | GIS interfacing with DTM based operations, terrain cuts and coverage areas |
| Automation | Automatic frequency allocation, activity definition and duplicate operations |
GenCOM SimPro — online
As an online tool, GenCOM SimPro produces synchronized multi-sensor simulations of scenarios for EW systems in an easily customizable output format and activation protocol.
| Descriptors | Simulated intercepted data generated during runtime for each user-defined simulated sensor |
|---|---|
| Signals | Multi-signal type handling capability |
| Control | Injection flow commands (Start Injection, Stop Injection), especially beneficial in training applications |
